BLOW MOULDING MACHINE
Positive Plast Machinery is a well-established name in the plastic processing industry, offering advanced and reliable solutions since 2012. With over 13 years of experience in manufacturing blow moulding machines, we have earned a strong reputation as a trusted Plastic Blow Moulding Machine Manufacturer in India. Based in Ahmedabad, Gujarat, we cater to a wide range of industries by delivering high-performance machinery that ensures productivity, durability, and cost efficiency.

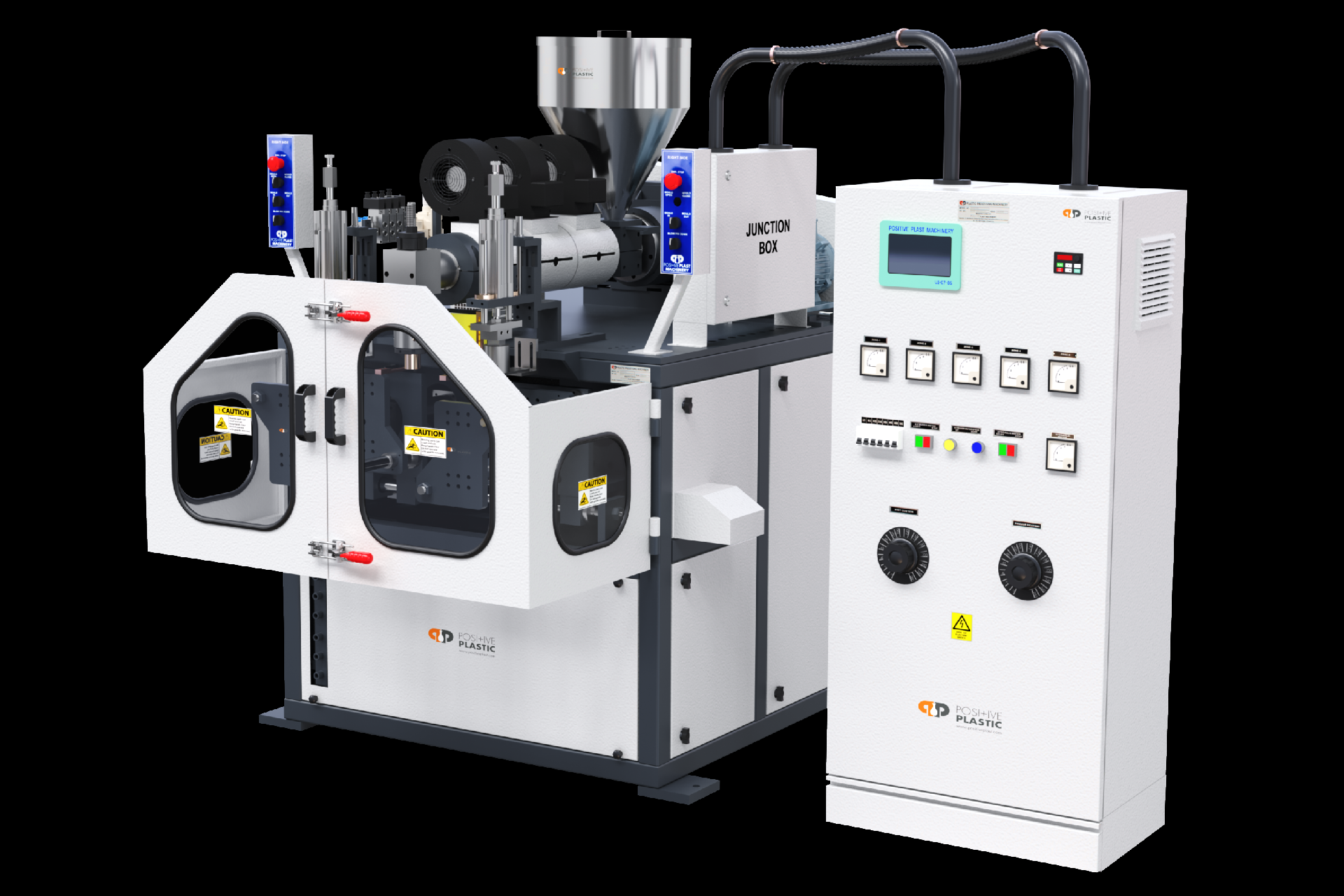

Our Double Station Blow Moulding Machine is designed to meet the growing demands of high-volume plastic container production. As a leading Double Station Blow Moulding Machine Manufacturer, Positive Plast Machinery focuses on precision engineering and robust construction to ensure consistent output and long service life. This machine supports container sizes from 50 ML to 5 LTR, making it an ideal solution for manufacturing bottles, containers, and jerry cans used in chemical, pharmaceutical, food, lubricant, and household product industries.
The Double Station Blow Moulding Machine enables simultaneous moulding operations, significantly increasing production capacity while maintaining uniform product quality. This efficiency makes it an economical investment for manufacturers aiming to expand output without compromising quality. It is widely preferred as a 2 Liter Blow Molding Machine for medium-sized containers and as a 5 Litre Jerry Can Blow Moulding Machine for larger packaging applications.
Energy efficiency is a key feature of our Plastic Blow Moulding Machine. The optimized design ensures reduced energy consumption, helping manufacturers lower operational costs and improve overall profitability. Additionally, the use of environment-friendly lubricants supports sustainable manufacturing practices while enhancing machine performance and component longevity.
Another major advantage of this machine is master batch saving, which helps reduce raw material wastage and ensures consistent color distribution across products. This feature not only improves product aesthetics but also results in significant cost savings over long-term production runs. The machine is also engineered to increase stacking load, producing containers with better structural strength that can withstand transportation and storage requirements.
As a reputed Plastic Blow Moulding Machine Manufacturer in Ahmedabad, Positive Plast Machinery follows strict quality control measures and uses premium components to deliver machines that perform reliably even under continuous industrial use. Our expertise and customer-focused approach have positioned us as a preferred Double Station Blow Moulding Machine Manufacturer across India and international markets.
Whether you require a compact solution for small containers or a robust system for heavy-duty applications, our Plastic Blow Moulding Machine range is designed to meet diverse production needs. Choose Positive Plast Machinery for advanced technology, economical investment, and long-term reliability in blow moulding solutions.
| MODEL | UNIT | 250/H/2 | 500/H/2 | 1000/H/2 | 2000/H/2 | 3000/H/2 | 5000/H/2 | |
|---|---|---|---|---|---|---|---|---|
| EXTRUDER | Screw Diameter | MM | 40 | 45 | 55 | 65 | 75 | 90 |
| L.D. Ratio | L/D | 22:1 | 22:1 | 22:1 | 22:1 | 22:1 | 22:1 | |
| Blowing Capacity | ML | 250 | 600 | 1500 | 2000 | 5000 | 5000 | |
| Screw Speed | R.P.M | 0-75 | 0-75 | 0-75 | 0-75 | 0-75 | 0-75 | |
| Plasticizing Capacity | kg/Hr. | 14-16 | 18/20 | 30/32 | 48/50 | 73/75 | 95/100 | |
| Heating Zones | NOS | 5 | 5 | 5 | 6 | 7 | 8 | |
| Max. Die Dia | HD | 25 | 45 | 68 | 90 | 120 | 140 | |
| Max. Die Dia | PVC | 20 | 35 | 50 | 60 | 80 | - | |
| MOULD | Mould Opening Stroke | MM | 125 | 150 | 185 | 200 | 225 | 300 |
| Min Mould Thikness | MM | 135 | 180 | 180 | 205 | 235 | 255 | |
| Mould Day Light Opening | MM | 260 | 330 | 360 | 405 | 460 | 555 | |
| Mould Height | MM | 250 | 270 | 340 | 350 | 400 | 450 | |
| Mould Width | MM | 140 | 170 | 220 | 250 | 290 | 320 | |
| Max. Container Dia | MM | 60 | 75 | 125 | 150 | 170 | 200 | |
| Clamping Force | TON | 1.50 | 2.1 | 3 | 3 | 3.6 | 5.2 | |
| ELEC. | Extruder Drive | HP | 5 | 7.5 | 10 | 20 | 25 | 50 |
| Hydraulic Motor | HP | 5 | 5 | 7.5 | 7.5 | 10 | 10 | |
| Blower | HP | - | 1.5 | 1.5 | 2.5 | 2.5 | 3 | |
| Heating load ( Head+Extruder) | KW/HP | 7.5/10 | 9/12 | 10.5/14 | 15/20 | 18.75/25 | 26.25/35 | |
| Total Power of M/C | KW/HP | 16.5/22 | 18.75/25 | 24.75/33 | 37.5/50 | 46.5/62 | 72.75/97 | |
| Main Cable Size (copper) | Core/MM2 | 4/6 | 4/6 | 4/10 | 4/16 | 4/35 | 4/50 | |
| OPT | Hydraulic Blowing | - | OPT. | OPT. | OPT. | INC. | INC. | INC. |
| Hot Wire Cutter | - | INC. | OPT. | OPT. | OPT. | OPT. | OPT. | |
| V-Strip / Zebra Line | - | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | |
| Bobbing | - | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | |
| Parison Programmer | Thick - Thin | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | |
| Multi Cavity Head | - | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | |
| Bottom Blowing System | - | OPT. | OPT. | OPT. | OPT. | OPT. | OPT. | |
| DIM | Control Panel Dimension (LXWxH) | FT. | 1.7X2.3X5.3 | 1.7X2.3X5.3 | 1.7X2.3X5.3 | 1.7X2.3X5.3 | 1.7X2.3X5.3 | 1.7X2.3X5.3 |
| Oil Tank Capacity | LTR | 125 | 150 | 180 | 240 | 240 | 240 | |
| Water Consumption Ltr./Min | - | 20-30 | 20-30 | 30-40 | 30-40 | 40-50 | 60-70 | |
| M/C Dimension (LxWxH) | FT | 7x6x8 | 8x6x9 | 9x7x10 | 10x7x11 | 11x8x11 | 13x9x13 | |
| Machine & Panel Weight | TON | 1.5 | 2 | 3 | 4.5 | 5.5 | 6.5 | |
| Air Requirement | C.F.M | 10 | 12 | 12 | 15 | 18 | 18 | |
